Deluxe Coffee Machine Espresso Insert
Make Excellent Espresso at Home

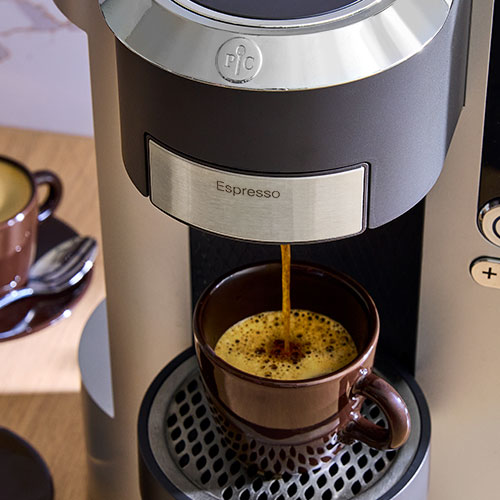

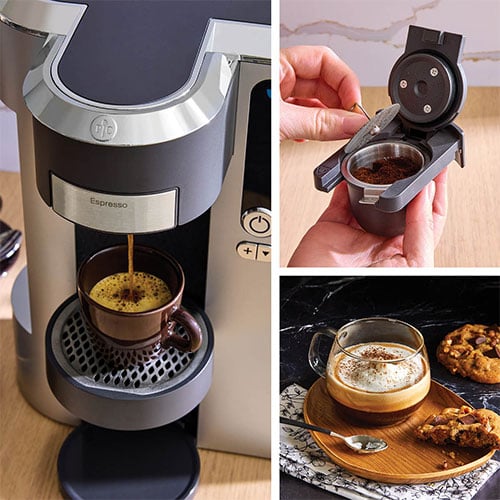

Transform your Deluxe Coffee Machine into an espresso maker with this espresso insert. Add your favorite ground espresso to the insert for a rich, velvety brew. When you use this insert with the Deluxe Coffee Machine, it will ensure your espresso has the perfect pressure, temperature, and flow rate, so it’ll taste refreshing in the morning, afternoon, or night.
Product Details

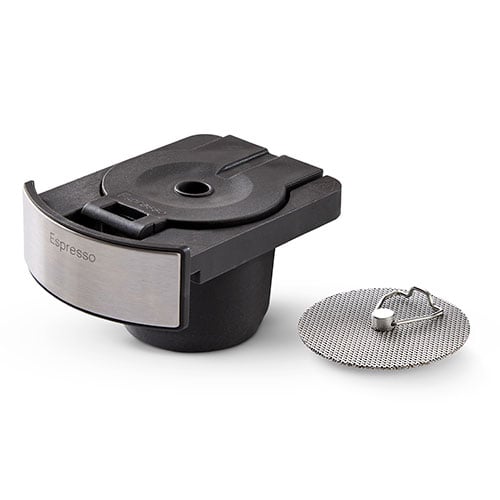

- Includes espresso insert and screen
- Make a 2-oz. (60-mL), 4-oz. (125-mL), or 6-oz. (175-mL) cup of fresh espresso at home
- Use only with the Deluxe Coffee Machine
- Dishwasher-safe
Specs
- Holds 2 tbsp (30 mL) of ground espresso
- Glass-filled nylon and stainless steel construction
Guarantee
- 2-year guarantee
Ways to Use
- To make a fresh cup of espresso, add 2 tbsp (30 mL) of your favorite ground espresso to the insert and lightly tap the grounds with the screen.
-
Use & Care
Use & Care
Use & Care
SAFETY AND USE INSTRUCTIONS
- Read, understand, follow, and save all Safety and Use Instructions to avoid injury.
WARNING
- • Adult supervision is required when using with children or persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge.
- • Before using, read the Deluxe Coffee Machine Use and Care.
- • The Deluxe Coffee Machine Espresso Insert should only be used with Pampered Chef’s Deluxe Coffee Maker. DO NOT use it with other coffee makers.
- • DO NOT use if this product or the Deluxe Coffee Maker is damaged.
- • DO NOT use extra-fine coffee grounds because it will lead to leaking. • DO NOT overfill the insert.
- • DO NOT over tamper ground espresso.
SAFEGUARDS
- • The product may be hot after brewing. Allow it to cool before handling.
- • After using the insert, open it over a sink as some water may remain inside of it.
- • When using the insert, make sure it’s properly in the machine. See Use instructions below. See illustration 1.
CLEANING
- • Disassemble before washing.
- • Wash before using for the first time; insert is dishwasher-safe when placed away from the heating element. Metal filter is handwash only.
USE AND CARE
- 1. Make sure there is water in the water tank. If not, follow the steps in the Filling the Water Tank section of the Deluxe Coffee Machine Use and Care.
- 2. Plug the power cord into a 120V power source and press the power button to turn the Deluxe Coffee Machine on.
- 3. Make sure the drip tray is in place. If not, follow the steps in the Placing the Drip Tray section of the Deluxe Coffee Machine Use and Care.
- 4. Place a mug on the drip tray plate. Make sure the mug is large enough to hold the drink size you’re selecting.

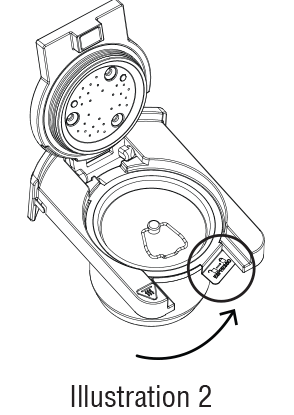

- 5. Open the top of the insert with the words facing toward you. Place the metal filter in the insert and slide it to the right to secure it in place using the “unlock” and “lock” icons as a guide. See illustration 2.

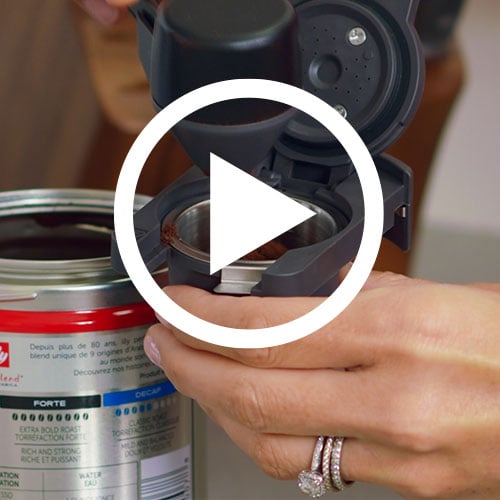

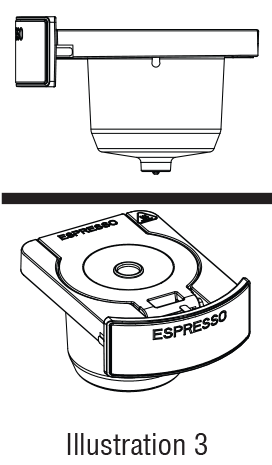

- 6. Fill the filter with 2 tbsp (30 mL) of ground espresso. DO NOT fill past the max fill line. Use the screen to gently tamper grounds. DO NOT over tamper. Make sure the lid of the insert can close completely after placing the screen on it. Close the top of the insert and make sure the top and bottom of the insert are flush. See illustration 3.
- 7. Lift the top lever of the Deluxe Coffee Machine. Insert the espresso insert into the cavity beneath the top lever with the words facing toward you and close the top lever. Note: Never force the top lever close. If the top lever doesn’t close, redo steps 5 and 6 and try inserting it again. WARNING: Keep your hands away from the piercing needle inside of the insert and inside the Deluxe Coffee Machine.
- 8. The 2 oz. (60 mL), 4 oz. (125 mL), and 6 oz. (175 mL) size options will illuminate. To select the beverage size, press the scroll button until the desired size flashes.
- 9. Press start.
- 10. When brewing is done, the unit will chime, and the start/power button will flash.
- 11. To remove the insert, allow the insert to cool. Then, lift the arm and slide the insert out. WARNING: The insert and components will be hot after brewing.

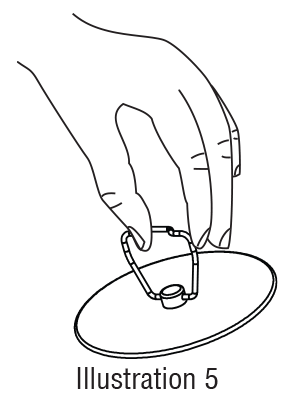

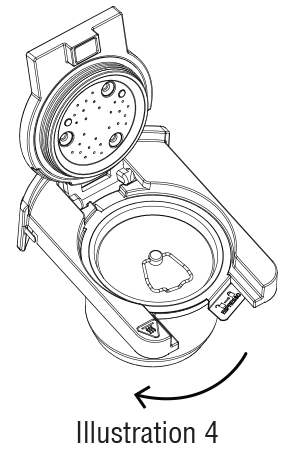

- 12. To remove the espresso filter, allow the insert to cool. Then, open the top of the espresso insert with the words facing away from you and slide the metal filter to the left using the “unlock” and “lock” icons as a guide. Then, pull the metal filter out. Using the handle on the screen, remove the screen. Remove the espresso grounds from the metal filter. See illustration 4 and 5. Note: Some water will remain in the insert after it brews, which is normal.
GUARANTEE
- • Two-year guarantee for noncommercial use. Refer to our website or the sales receipt for details.
Made in China
